Cartesian robot
AXELIA AXG series
Multi-functional and easy-to-use 3-axis/4-axis type

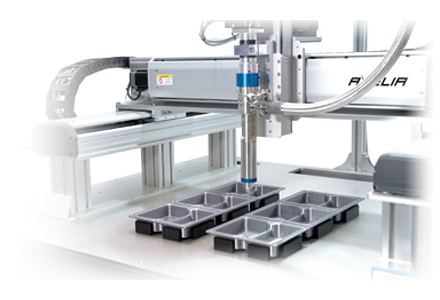

The Cartesian robot AXG series is an orthogonal robot that is effective when the workpiece is heavy or on an inline line. The workpiece installation location is free, so even heavy workpieces can be installed without any problems. In addition, the high payload type allows for the installation of large tools without any selection.

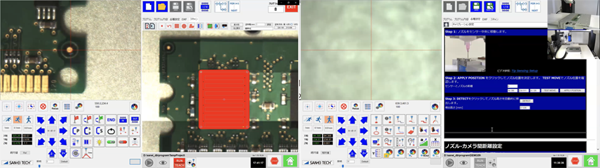

Control software Fluid magic coating
System lineup
AXG400
AXG600
AXG8012
Option
CCD front camera Nozzle adjuster Teaching pendant Pillar unit Nozzle detect sensor Laser height sensor Touch height sensor
*We can accommodate various customizations.
AXG Series Product Specifications
| AXG400 | AXG600 | AXG8012 | ||
|---|---|---|---|---|
| Number of axes | 3 | |||
| Maximum working area (X / Y / Z) | 400 × 400 × 100 mm | 600 600 × × 150mm | 800 1200 × × 150mm | |
| Carrying load (tool) | 5kg | 20kg | ||
| weight | 73kg | 110.5kg | 162kg | |
| Size | 1007.5 760 x x 710.5mm | 1219.5 956.5 x x 682mm | 1419.5 1564 x x 682mm | |
| Maximum speed (XY / Z) | 500 / 300mm/sec | 800 / 200mm/sec | ||
| drive system | 5 phase microstepping motor | XY axes: Stepping motor Z-axis: Stepping motor (brake type) | ||
| Memory capacity | PC storage | |||
| General purpose I/O | 32 inputs / 32 outputs | |||
| Input AC (input to power supply) | AC200-230V 380W | AC200-230V 470W | ||
| Repeatability* | ±0.02 mm/axis | ±0.05 mm/axis | ||
| Vision | CCD camera (optional) | |||
| dispensing software | Fluid Magic | |||
| nozzle detection | Nozzle detector (optional) | |||
| teaching pendant | (option) | |||
| height detection | Laser (optional) | |||
