A commercially available tube solution can be directly installed and the application process can be performed directly.

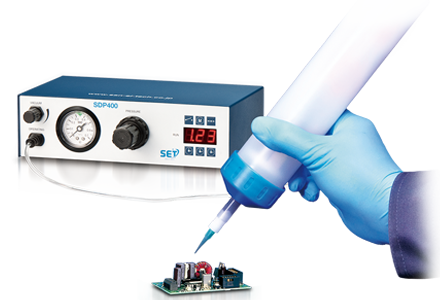

AUTOTUBE
One-touch installation. Direct fixed amount dispensing
Anyone can easily apply silicone or solvent-based adhesives in tube cartridges using air pressure and a power source. It requires 0.5 MPa air and a 100 (200) V power supply. Because it uses air pressure, your hands won’t tire and work more efficiently. The dedicated controller allows you to quantitatively control the amount of adhesive applied.
- High-precision coating possible using a minimum 0.25mm nozzle
- Excellent liquid drainage
- Significant cost reductions are realized as the liquid is squeezed out without wasting it.
- Commercially available adhesive types can be selected according to usage conditions.
ATD300CV-DAV Auto tube set with valve

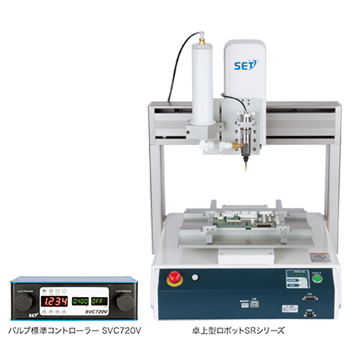

The valve-equipped autotube ATD300CV-DAV, combined with the piston valve SV35DA, enables stable, drip-free fluid dispensing. When mounted on the SR series tabletop dispensing robot, it dispenses silicone at a fixed rate with even greater precision.
| Electronic parts | Fixing capacitors, coils, etc. on the board, etc. |
|---|---|
| precision machinery | Grease application, general manual tube/cartridge liquid application work, etc. |
| Medical equipment | |
| Automobile |
Autotube standard set
For 100g/200g tubes: ATD200CW-B (standard set)
For 330g cartridge: ATD300CB-B (standard set)
For 100/200g tube liquid ATD200CW-B
| Product number | Product name |
|---|---|
| SDP400 | dispense controller |
| SD314 | AC adapter |
| FTSW001 | Foot pedal switch (2.4m cord) |
| Consumable accessories (SH110-TK) | Tapered nozzle (5 types of various gauges x 10 each) Tip cap (10 pieces) |
| SAR20RAT | 100/200g tube holder |
| SAR20RC | 100/200g holding cap |
| SAR59 | air hose |
| 7514-2PB | tip adapter |
| *880001A.B | Adapter A/B 2 each |
For 330g cartridge ATD300CB-B
| Product number | Product name |
|---|---|
| SDP400 | dispense controller |
| SD314 | AC adapter |
| FTSW001 | Foot pedal switch (2.4m cord) |
| Consumable accessories | Tapered nozzle (5 types of various gauges x 10 each) Tip cap (10 pieces) |
| 880012A-2 | 2 big taper nozzles |
| 580091 | 330g outer container set (with holding cap and air hose) |
| 7514-2PB | tip adapter |
| 7514-2PA | Adapter for big taper nozzle |
| 880003A | cartridge adapter |
| 880003B | cartridge adapter |
