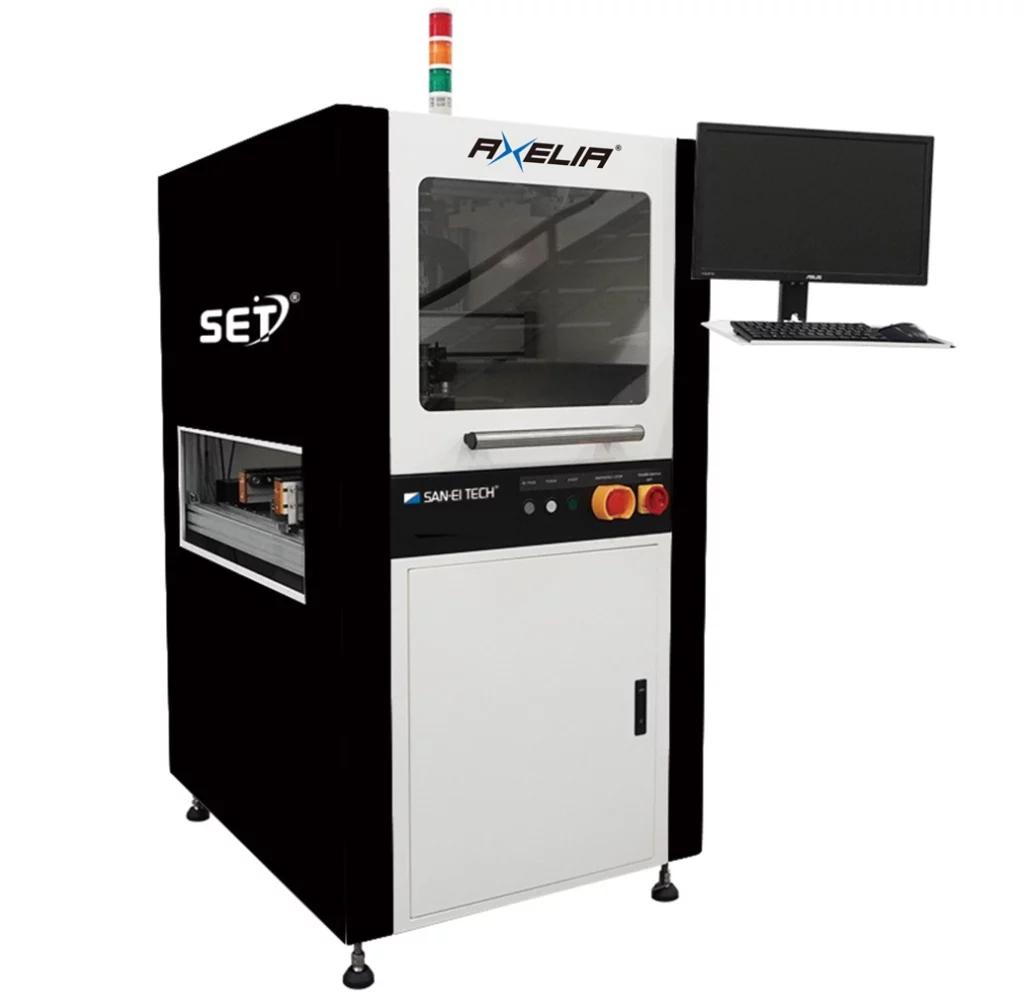

Advanced dispensing operations can be achieved with simple operationsInline type dispensing machine AXELIA AXSD500
The AXSD500 is an advanced model designed as an automated inline dispensing device. Intuitive screen operation simplifies the previously time-consuming task of creating dispensing programs.
In addition to position and height correction using image recognition and height sensors, it also has basic inspection functions, making versatile dispensing work more efficient.
- All-in-one model that can be used immediately
- High-precision valves can be installed according to the application
- Intuitive operation with the latest application software, Fluid Magic
- Servo motors are used to achieve accurate operation
- Camera allows for everything from teaching to recognition (optional)
- Height detection sensor can be installed (optional)
- Needle position correction unit can be installed (optional)
Product Specifications
| Standard specifications | |||||
|---|---|---|---|---|---|
| Dimensions: L x W x H | 840 x 1090 x 1610 mm (excluding signal tower) | ||||
| weight | 360kg | ||||
| Number of axes | 3 axes (X, Y, Z) | ||||
| shaft power | Servomotor | ||||
| X,Y movement speed | 1-500mm / sec | ||||
| Positioning Accuracy | ± 0.01mm | ||||
| XYZ movement range | 450 x 500 x 100mm *Compatible with M-size boards | ||||
| Application area | 370 × 400mm | ||||
| Maximum number of valves | 1 valve | ||||
| Equipped with valve | SV70, SV91CD, SV51, SV35DA, SV91, SV97MS* | ||||
| Conveyor | Electric variable type (variable width 50-510mm) | ||||
| Conveying direction | left → right | ||||
| Pass line adjustment range | 880~965mm (maximum 915~965mm) | ||||
| Work height (maximum) | 100 mm | ||||
| camera function | UV light and LED lighting for inspection | ||||
| camera function | Teaching function, position correction function, simple inspection function* | ||||
| Height detection function | Laser height sensor* | ||||
| Air specifications | φ8 hose・0.6Mpa (maximum input pressure) | ||||
| Power-supply voltage | AC200-240V (single phase) | ||||
*option
