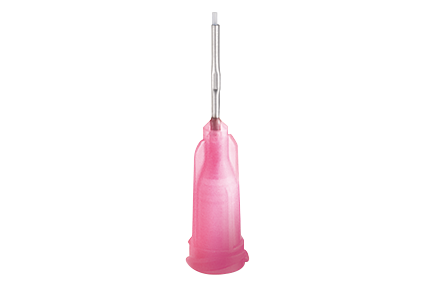

TLC Teflon nozzle
Ideal for applying instant adhesives and solvents that harden quickly and are prone to clogging.
| gauge | Tip Teflon outer diameter （Mm） | Tip Teflon inner diameter （Mm） | Needle outer diameter （Mm） | Needle length | Color | Number/box | |
|---|---|---|---|---|---|---|---|
| 16.5 mm | 29.2 mm | ||||||
| 21 | 1.18 | 0.68 | 1.65 | SH21TLCS-B | SH21TLC-B | gray | 50 |
| 25 | 0.76 | 0.30 | 1.27 | SH25TLCS-B | SH25TLC-B | Pink | 50 |
Hub material: Polypropylene Needle material: Stainless steel Inside needle: Teflon (peelable)
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
oval nozzle
The liquid is dispensed in an oval shape, allowing for wide line application (approximately 2 mm wide).
Ideal for dispensing medium to high viscosity fluids
| gauge | Needle length | Color | Number/box |
|---|---|---|---|
| 12.7 mm | |||
| 15 | SH15OVAL-B | amber | 50 |
Discharge port diameter (inner dimension): 1.98 x 0.41mm
Hub material: Polypropylene Needle material: Stainless steel
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
brush nozzle
Can be applied thinly and uniformly over a wide area without damaging the surface of the workpiece. The brush material is made of nylon and comes in two types: soft and hard.
| Brush hardness | M | High flow type |
|---|---|---|
| soft | SH40A | SH40HF |
| hard | SH41A | SH41HF |
Order unit: 1 brush brush material: nylon
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.

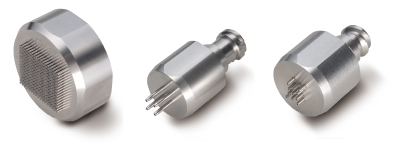

multi nozzle
Multi-needle nozzle ideal for dispensing medium to high viscosity liquids. Number of needles and needle length can be selected. The “multi-chamber nozzle” has tapered needle tips.
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
