High-precision spray with reduced scattering
spray valve
| Weight/Size | 接 続 | Wetted parts material | maximum hydraulic pressure | For flow rate adjustment Stroke Adjustment mechanism | |
|---|---|---|---|---|---|
| ▼ SV91 | 294g φ26.9×105mm | Supply port: 1/8NPT (Special nozzle/cap) Mounting hole: M6×1 | Teflon or UHMW stainless | 2.0MPa | There |
| ▼ SV01S | 312g φ26.9mm (liquid chamber part) x 105mm | Supply port: 1/8NPT Mounting hole: M6×1 tapped hole | SUS303, Teflon | 0.7MPa | There |
| ▼ SV59MS | 280g (362g) *() shows when equipped with solenoid valve φ27 mm x 91 mm | Supply port: M5 Mounting hole: M6 | Stainless steel, PTFE, FKM, PP | 0.7MPa | There |
| ▼ SV92FL | 150g 21mm x 57mm long (excluding fittings) | Supply port: M5 female thread Mounting hole: M3 female thread | SUS303/FKM | 0.7MPa | There |
Mist application using minute amounts of low-pressure air maximizes uniformity and workability

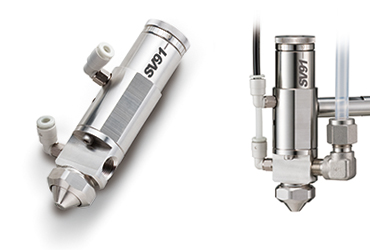

SV91

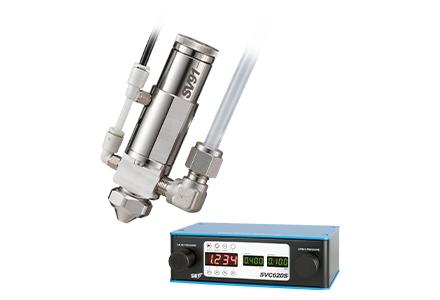

The spray valve SV91 uses a small amount of micro-pressure air to accurately apply a mist. By adjusting the flow rate of the liquid, adjusting the nozzle air, and then adjusting the air stop time, High precision spray control without scatteringAdjustable nozzle air is released after the dispensing cycle is complete to prevent fluid clogging, significantly reducing maintenance and downtime.
- No overspray or splashing
- Adjustable fluid flow rate
Valve for substrate coating that can control high viscosity materials with less scattering.
SV01S
The SV01S coating spray valve is capable of spraying high-viscosity liquids up to about 30,000 mPa・s. It can now be used to apply a wide range of high-viscosity materials, such as silicone, UV, and grease, without contact, which have previously been difficult to prevent from scattering.
- Spray control is possible even for high viscosity materials up to 30,000mPa・s
- Compatible with high viscosity fluids such as silicone, UV materials, epoxy, and grease
- Achieves high-precision non-contact spray application with reduced scattering
- Establishes easy atomization adjustment and high reproducibility when used with controller SVC620S
SV59MS

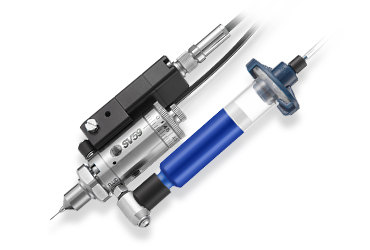

The SV59MS spray valve for ultra-fine coatings uses a small diameter nozzle to enable non-contact, thin-film spray coating. Excellent liquid drainage properties reduce scattering.
Stable thin film spray coating is possible even in narrow spaces.
- Non-contact/thin film spray application
- Small diameter nozzle can be used
- Excellent liquid drainage thanks to the liquid stopping mechanism inside the nozzle
- Possible to apply with less scattering
A spray valve that achieves stable, narrow application
SV92FL

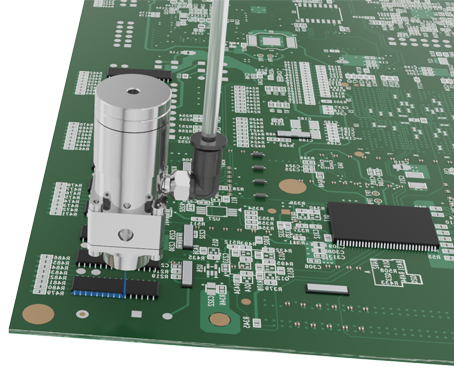

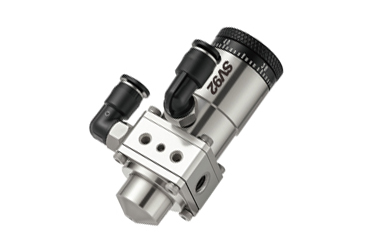

The FineLineSpray SV92FL valve head unit uses a non-contact spray system to enable stable FineLine application even when moving at low speeds.
- Fine Line application by non-contact spray method
- Thin line coating is possible even when the coating robot moves at a low speed
- Enables spray application of low viscosity liquids with reduced scattering.
- Space-saving compact valve body
- Fine adjustment of discharge flow rate is possible
Non-contact spray for fine line application of less than 1mm
Stable line formation with reduced bleeding even at low speeds
The smallest valve body that can be installed anywhere
Can be flexibly incorporated into existing equipment or small spaces
