valve controller
| power supply | Power | Input pressure range | Pressure setting range | Atomization pressure setting range | Discharge time setting range | Discharge start input | I / O | Installation environment | External dimensions | weight | Accessories | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SVC720V | DC24V (AC100~240V AC adapter included) | 18W | 0.4MPa～0.7MPa | 0～0.50MPa (Valve driving pressure is 0.40MPa～) | ー | 0.005～999.9sec | Foot pedal, band switch, DC5 to 24V signal (I/O) | D-Sub9 pin connector | 5℃～40℃ (No condensation) | Width 250 Height 76(78) Depth 139(177) | 1.5kg | AC adapter Foot pedal switch |
| SVC620S | DC24V (AC100~240V AC adapter included) | 18W | 0.4MPa～0.7MPa | 0～0.50MPa (Valve driving pressure is 0.40MPa～) | 0～0.50MPa | 0.005～999.9sec | Foot pedal, band switch, DC5 to 24V signal (I/O) | D-Sub9 pin connector | 5℃～40℃ (No condensation) | Width 250 Height 76(78) Depth 139(177) | 1.5kg | AC adapter Foot pedal switch |
| SVC620CD | DC24V (AC100~240V AC adapter included) | 18W | 0.4MPa～0.7MPa | 0～0.50MPa (Valve driving pressure is 0.40MPa～) | 0～0.50MPa | 0.005～999.9sec | Foot pedal, band switch, DC5 to 24V signal (I/O) | D-Sub9 pin connector | 5℃～40℃ (No condensation) | Width 250 Height 76(78) Depth 139(177) | 1.4kg | AC adapter Foot pedal switch |
| SVC720F | DC24V (AC100~240V AC adapter included) | 18W | 0.4MPa～0.7MPa | 0～0.50MPa (Valve driving pressure is 0.40MPa～) | ー | 0.005～999.9sec | Foot pedal, band switch, DC5 to 24V signal (I/O) | D-Sub9 pin connector | 5℃～40℃ (No condensation) | Width 250 Height 76(78) Depth 139(177) | 0.8kg | AC adapter Foot pedal switch |
Enables more accurate and stable liquid dispensing

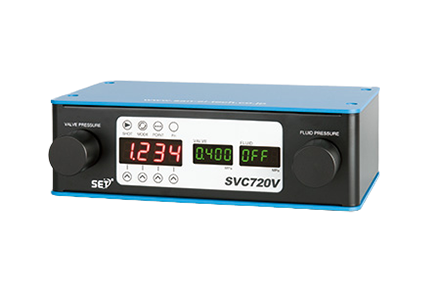

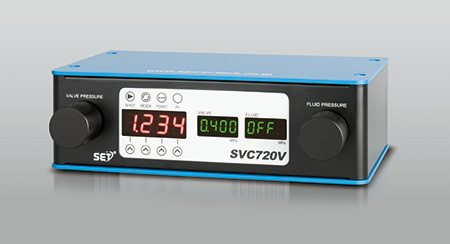

High precision standard valve controllerSVC720V
SVC720V is a valve-specific controller that can be used in combination with a dispense valve to set a discharge program. Built-in syringe pressure regulator enables more accurate and stable continuous dispensing.
- Digitization allows detailed settings
- Discharge response speed improved by 1% (compared to conventional products)
- Equipped with a precision regulator for stable discharge
- Built-in precision regulator for syringe and tank pressurization
- 10% reduction in power consumption
Enables accurate and stable spray application

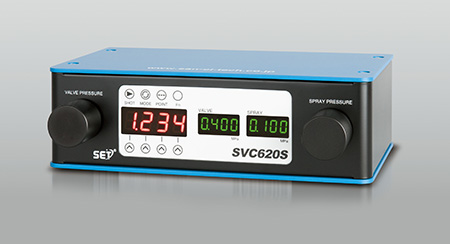

Controller for spray valveSVC620S
The SVC620S is a dedicated controller for spray valves with a digital display. The all-digital design allows for easy operation, input pressure confirmation, and minute pressure control for optimal spray application.
Discharge can be easily adjusted by controlling the spray valve opening time and nozzle air pressure. A small amount of low-pressure air is supplied at a maximum atomization pressure of 0.5 MPa, ensuring that the liquid is applied reliably from the nozzle tip without splashing or overspray.
- Discharge response speed improved by 10% (compared to conventional model)
- Equipped with a precision regulator for stable discharge
- Comes with delay function before and after atomization pressure application
- 10% reduction in power consumption
All-digital specification with excellent operability

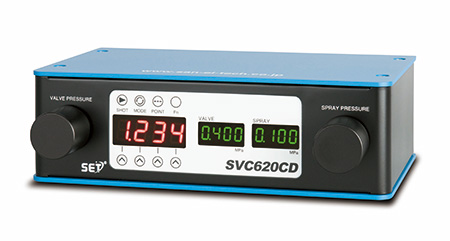

Controller for coating dot valve SV91CDSVC620CD
The SVC620CD controller is a dedicated controller for the SV91CD. Dot coating, line coating, and spray coating can be used by switching the I/O input.
- Flat shape allows equipment to be mounted
- Atomization air can be controlled using the switch on the back (I/O control)
- Achieves excellent liquid drainage with atomizing air tiller function
Enables fast and stable moisture-proofing agent application

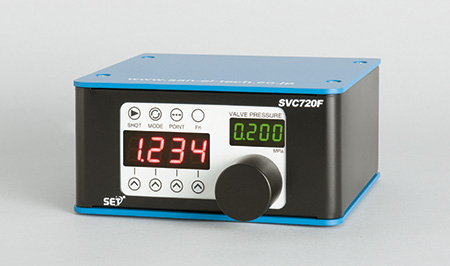

Conformal coating valve dedicated controllerSVC720F
The SVC720F controller makes it easy to adjust conformal coating valve dispensing. Controls the valve drive solenoid valve placed close to the SV7 with high-speed response.
- Flat shape makes equipment installation easy
- Achieves high-speed, high-dimensional coating
