syringe system accessories
One-touch installation. Direct fixed amount dispensing
tip cap
Uniform Luer lock type prevents slippage and leakage.
Product Specifications
| capacity | Product number | Quantity/box |
|---|---|---|
| Common to all types | SH13G-B | 50 |
| SH13TG-B | 50 |
Material: Polypropylene
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
end cap
Easy to put on and take off with a snap type.
Product Specifications
| capacity | Product number | Quantity/box |
|---|---|---|
| 3 cc | SH09ECG-B | 50 |
| 5 cc | SH10ECG-B | 40 |
| 10 cc | SH11ECG-B | 30 |
| 30cc/55cc | SH12ECG-B | 20 |
Material: Polypropylene
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.

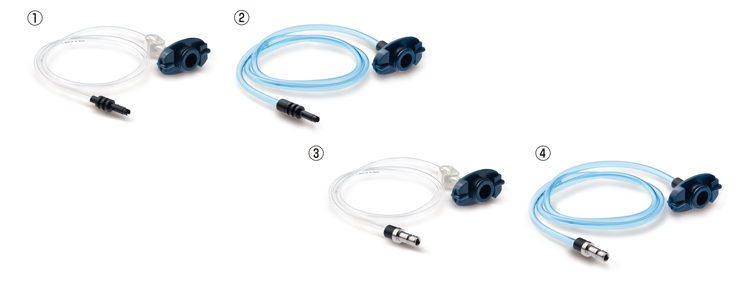

syringe adapter
The one-piece molded adapter (polyacetal) is equipped with an O-ring (BUNA). The polyurethane air hose, safety clip and quick connector are connected.
Product Specifications
| capacity | Quick connector specifications (standard product) | Metal connector specifications | Quantity/box | ||||
|---|---|---|---|---|---|---|---|
| ①φ4.0mm | ②φ6.0mm | ③φ4.0mm | ④φ6.0mm | ||||
| 0.9m | 1.8m | 0.9m | 1.8m | 0.9m | |||
| 3 cc | 1000BSH48 | 1000BSH48-6 | 1000DSH48 | 1000DSH48-6 | 1000BSH48-ST | 1000DSH48-ST | 1 |
| 5 cc | 1000BSH49 | 1000BSH49-6 | 1000DSH49 | 1000DSH49-6 | 1000BSH49-ST | 1000DSH49-ST | 1 |
| 10 cc | 1000BSH50 | 1000BSH50-6 | 1000DSH50 | 1000DSH50-6 | 1000BSH50-ST | 1000DSH50-ST | 1 |
| 30cc/55cc | 1000BSH52 | 1000BSH52-6 | 1000DSH52 | 1000DSH52-6 | 1000BSH52-ST | 1000DSH52-ST | 1 |
Adapter material: Polyacetal Hose material: Polyurethane O-ring: BUNA The tube length for metal connectors is 0.9m. *Those for metal connectors are compatible with dispensers made by other companies.
Replacement O-ring (for adapter)
BUNA is a standard product and is applicable to most liquids.
When using solvents or reactive liquids, VITON and EPR can be selected.
Product Specifications
| capacity | BUNA Nitrile Rubber | VITON fluororubber | EPR Ethylene Propylene Rubber | Quantity/box |
|---|---|---|---|---|
| 3 cc | SH48R-B | SH48RV-B | SH48RE-B | 10 |
| 5 cc | SH49R-B | SH49RV-B | SH49RE-B | 10 |
| 10 cc | SH50R-B | SH50RV-B | SH50RE-B | 10 |
| 30cc/55cc | SH52R-B | SH52RV-B | SH52RE-B | 10 |
