Completely integrated system from adapter to tip cap for safe, high-quality fluid dispensing operations
syringe system
Changes in quality, cost, and productivity related to liquid coating work

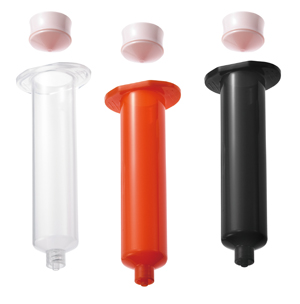

Syringe/piston set
Product Specifications
For each set, the syringe and piston (standard pink piston) are packed in the same box.
| capacity | Transparent ① | UV cut ② | Black color ③ | Quantity/box |
|---|---|---|---|---|
| 3 cc | SH09CPP-B | SH09LBPP-B | SH09UPP-B | 50 |
| 5 cc | SH10CPP-B | SH10LBPP-B | SH10UPP-B | 40 |
| 10 cc | SH11CPP-B | SH11LBPP-B | SH11UPP-B | 30 |
| 30 cc | SH12CPP-B | SH12LBPP-B | SH12UPP-B | 20 |
| 55 cc | SH13CPP-B | SH13LBPP-B | – | 15 |
| 75 cc | SH14CPP-B | SH14LBPP-B | – | 10* |
Syringe material: Polypropylene Piston material: Polyethylene *In a bag
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.

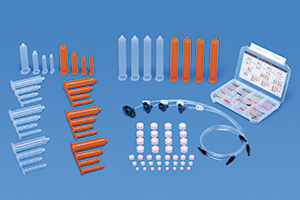

Lab kit SH100-SK
This is extremely useful when using a dispenser for the first time or when selecting a syringe and dispensing nozzle that suits your application conditions. It also includes a nozzle kit that packages various nozzles ranging from 14 gauge to 30 gauge for minute dispensing.
Packing contents
- Nozzle kit…1 piece
- 3cc/5cc/10cc/30cc/55cc syringe (transparent/UV cut)…4 each
- 3cc/5cc/10cc pistons…8 each
- 30cc & 55cc pistons… 16 pieces
- 3cc/5cc/10cc/30cc & 55cc syringe adapters…1 each
*If you are using only the nozzle kit, please specify “SH100”.

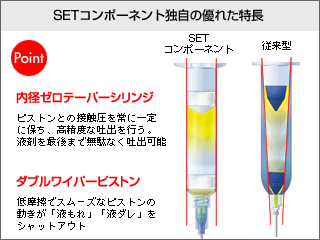

Internal diameter zero taper syringe enables highly accurate dispensing
The contact pressure with the piston is always kept constant, enabling highly accurate dispensing. Even highly viscous liquids can be dispensed to the end without wasting any liquid.

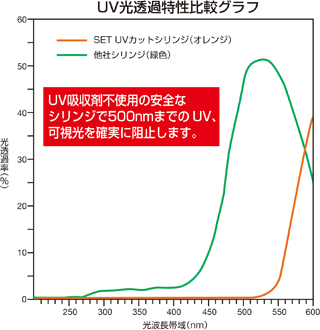

Completely shuts out UV and visible light up to 500nm
UV cut syringe
The SET UV Cut Syringe blocks UV and visible light from 220 to 500 nm. Its see-through design allows for accurate visual inspection of the remaining liquid level. It does not contain UV absorbers, eliminating the risk of contamination from leaching agents, even with certain UV liquids. The properties and functionality of the UV agent are maintained, dramatically improving product quality after bonding. It is particularly effective with highly reactive UV adhesives.
[Used in a wide range of applications]
- LCD main seal, end seal, etc.
- HDD sliders, motor fixings, etc.
- Mobile phone camera modules, keypads, etc.
- Adhesion of medical catheters, etc.
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
