High-pressure pumping and high-precision direct application of medium to high viscosity liquids in cans is possible.
Canned high viscosity liquid dispensing device

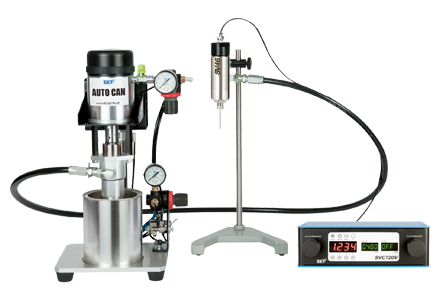

AUTOCAN (small high-pressure pump)
It pumps and dispenses high-viscosity liquids such as commercially available grease and silicone directly from the can using high pressure.By combining it with the high-pressure spool valve SV47 and valve controller SVC720V, it is also suitable for automation.
Product Specifications
| pressure ratio | 5 × 1 | 10 × 1 | 20 × 1 |
|---|---|---|---|
| Discharge amount (1 cycle) | 11.0 cc | 6.6 cc | 3.2 cc |
| Maximum discharge amount (50 cycles) | 550 cc | 330 cc | 160 cc |
| Air consumption | 38L/min (ANR) (0.4Mpa: 50 cycles/min) | ||
| External dimensions | W255 × D210 × H345mm | ||
| weight | 6.5kg | ||

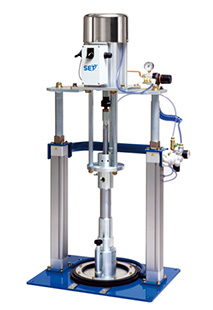

Pail pump
High viscosity liquids such as grease and silicone are pumped from a pail.
Product Specifications
| pressure ratio | 30 × 1 | 50 × 1 |
|---|---|---|
| Discharge amount (1 cycle) | 75 cc | |
| 最大吐出圧力 | 12Mpa | 20Mpa |
| Maximum discharge amount | 1.5L / min | |
| Air consumption | 12L/cycle | 20L/cycle |
| External dimensions | W540 × D400 × H1520mm | W540 × D400 × H1584mm |
| weight | 78.5kg | 83.5kg |
Pressure Reducing Unit
The high-pressure pumped liquid is stably decompressed just before the application machine.
Product Specifications
| Plunger Pressure Ratio | 3 × 1 |
|---|---|
| Plunger Capacity | 20cc/cycle |
| pressure resistance | 12Mpa |
| Drive system | Air |
| External dimensions | W124 × D73.5 × H243.5mm |
| weight | 3.4kg |
