The viscosity of the liquid in the syringe is maintained constant through temperature control.

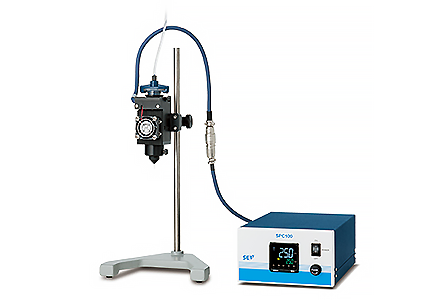

Peltier type high precision syringe temperature control system
The Peltier-type high-precision syringe temperature control system accurately controls the temperature of the liquid in the syringe and maintains the liquid temperature at a constant level. It reaches the set temperature in a short time and maintains it constant. Stable coating work is achieved by maintaining a constant liquid viscosity. In combination with the SET syringe system, more accurate and stable dispensing is possible.
- Stable application is possible with three operating modes: timer, steady, and teaching.
- Comes with a vacuum function to prevent liquid dripping
- Equipped with a pressure stable tank to achieve high precision discharge
- Easy-to-read display
Product Specifications
| power supply | SPC100 / SPB-10 SPB-30 |
|---|---|
| Temperature setting range | 20 to 60℃ (at ambient temperature of 20 to 25℃) |
| temperature accuracy | ±0.1℃* |
| Heat dissipation method | Heat sink + fan type |
| Compatible syringe | Our 10cc/30cc syringe |
| Compatible nozzle | Our standard needle nozzle 20~32G (needle length: 6.4mm~) *Please contact us separately when using precision nozzles/metal nozzles. |
| power supply | AC100V~AC240V *When using overseas, a separate power cable is required. |
| Power | 10cc approx. 30W / 30cc approx. 35W |
| Accessories | Power cable (2m) *For domestic AC100V Relay cable (2m) |
| Sold separately | ・Syringe adapter ・Syringe ・Piston ・Nozzle ・Stand |
Weight/Dimensions
| Model number/name | weight | External dimensions () include protrusions |
|---|---|---|
SPC100 controller
| 2.4kg | W160(163.3) × D24(263.5)2 × H90(94.4)mm |
SPB-10 10cc
| 310g | W40(79) × D68 × H93mm |
PB-30 30cc
| 420g | W46(82)×D76×H121mm |
