Maintains excellent liquid drainage with quick and reliable shutoff
diaphragm valve
| Weight/Size | 接 続 | Wetted parts material | maximum hydraulic pressure | For flow rate adjustment Stroke Adjustment mechanism | |
|---|---|---|---|---|---|
| ▼ SV62 | 154g φ26.9×79.0mm | Supply port: 1/8NPT Discharge port: 1/4-28UNF*1 Mounting hole: M5×0.8 | UHMW | 0.48MPa | There |
| ▼ SV62-B | 154g φ26.9×79.0mm | Supply port: 1/8NPT Discharge port: 1/4-28UNF*1 Mounting hole: M5×0.8 | UHMW | 0.48MPa | There |
| ▼ SV12 | 85g φ18.9×63.2mm | Supply port: M5 Discharge port: Lure taper *1 Mounting hole: M5×0.8 | UHMW stainless | 0.48MPa | There |

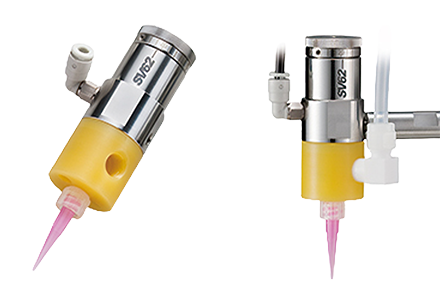

SV62
The high-precision diaphragm valve SV62 uses an inert polymer resin that does not react with liquids, making it possible to uniformly apply low to medium viscosity liquids such as solvents, instant adhesives, anaerobic adhesives, and fluxes without dripping.
- Small and lightweight, does not take up installation space
- Liquid volume control possible
- Quick and reliable shut-off action prevents liquid dripping and maintains excellent liquid drainage properties

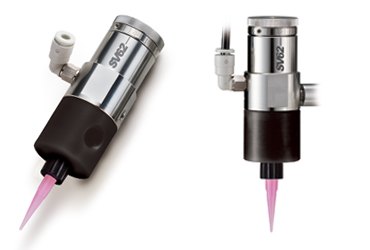

SV62-B
The high-precision diaphragm valve SV62-B uses black UHMW* resin, which has excellent resistance to liquids and excellent light blocking properties, and is capable of dispensing low-viscosity liquids such as UV adhesives and UV anaerobic adhesives in fixed amounts without dripping.
- Spray control is possible even for high viscosity materials up to 10,000mPa(s)
- Compatible with liquids not subject to VOC regulations such as UV materials, silicone, and epoxy.
- Achieves high-precision non-contact spray application with reduced scattering
- When used in combination with the SVC620S controller, it achieves easy atomization adjustment and high reproducibility.

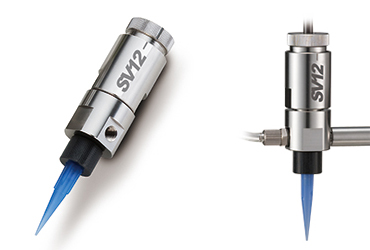

SV12
The SV12 ultra-compact diaphragm valve is capable of uniformly coating UV-curable adhesives and other low to medium viscosity fluids without dripping. It is particularly easy to install when space for mounting the valve is limited.
- Ultra-compact (total length: 63.2mm weight: 85g)
- Millions of cycles without maintenance
- No liquid drips when starting and stopping discharge
