Achieves a sharp coating trajectory without scattering
conformal coating valve
| Weight/Size | 接 続 | Wetted parts material | maximum hydraulic pressure | For flow rate adjustment Stroke Adjustment mechanism | |
|---|---|---|---|---|---|
| ▼ SV70 | 334g φ26.9 mm x 141 mm | Supply port: 1/8NPT (Dedicated nozzle) Mounting hole: M6 tap hole | UHMW stainless | 0.7MPa | There |
| ▼ SV01CS | 312g φ26.9mm (liquid chamber part) x 143mm | Supply port: 1/8NPT female thread Mounting hole: M6 female thread | SUS303 | 0.7MPa | There |
Valve for substrate coating that can control high viscosity materials with less scattering.

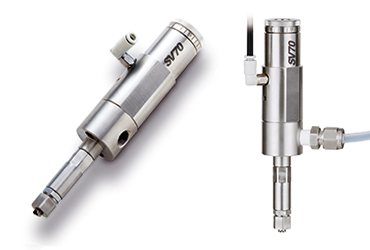

SV70
The SV70 conformal coating valve is equipped with a unique square nozzle that allows for a wide range of coatings at low flow rates. It achieves a stable coating trajectory without scattering, and its high-speed response enables high-speed tact and excellent liquid drainage even when coating in multiple extreme locations. (Not compatible with circulating liquid temperature control system)
- Stable discharge performance at the start/end of application
- Reduce maintenance
- Prevents mist, scattering, and air bubbles specific to the application
Square nozzle for superior dispensing pattern
- Rectangular nozzle diameter reduces liquid clogging
- Uses carbide material to enable stable discharge over long periods of time.
- Equivalent diameter nozzle enables low flow rate and wide pattern formation
- Realizes high-dimensional coating with high precision and no scattering
Valve for substrate coating that can control high viscosity materials with less scattering.

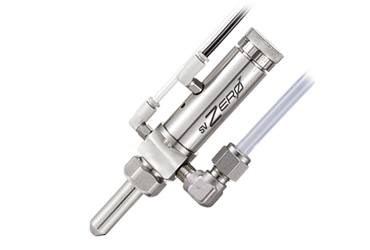

SV01CS
The SV01CS spray valve for substrate coating is capable of spraying low to high viscosity liquids up to approximately 10,000mPa(s).
- Spray control is possible even for high viscosity materials up to 10,000mPa(s)
- Compatible with liquids not subject to VOC regulations such as UV materials, silicone, and epoxy.
- Achieves high-precision non-contact spray application with reduced scattering

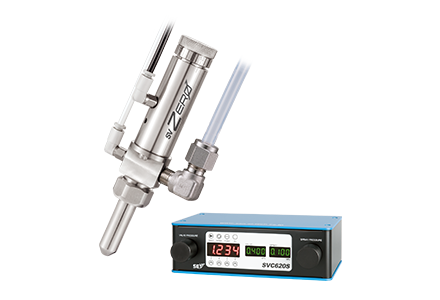

- When used in combination with the SVC620S controller, it achieves easy atomization adjustment and high reproducibility.

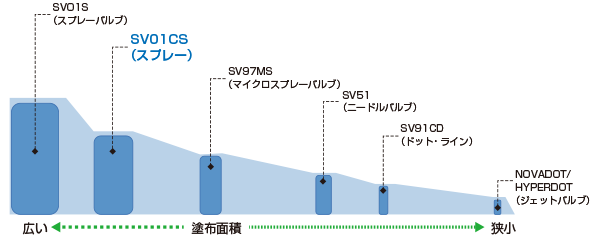

Appropriate image of coating area and various application valves
