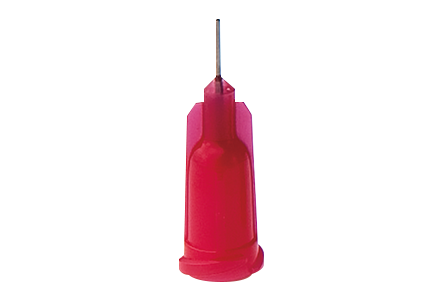

General purpose nozzle
Available in a wide variety of needle lengths and diameters. Compatible with general-purpose liquids. The tip of the needle is bar-free, so the flow of liquid is stable.
| gauge | Needle length | Color | Number/box | |||
|---|---|---|---|---|---|---|
| 6.4 mm | 12.7 mm | 25.4 mm | 38.1 mm | |||
| 14 | SH14-0.25-B | SH14-B | SH14-1-B | SH14-1.5-B | olive | 50 |
| 15 | SH15-0.25-B | SH15-B | SH15-1-B | SH15-1.5-B | amber | 50 |
| 18 | SH18-0.25-B | SH18-B | SH18-1-B | SH18-1.5-B | Green | 50 |
| 20 | SH20-0.25-B | SH20-B | SH20-1-B | SH20-1.5-B | Pink | 50 |
| 21 | SH21-0.25-B | SH21-B | SH21-1-B | SH21-1.5-B | purple | 50 |
| 22 | SH22-0.25-B | SH22-B | SH22-1-B | SH22-1.5-B | Blue | 50 |
| 23 | SH23-0.25-B | SH23-B | SH23-1-B | SH23-1.5-B | Orange | 50 |
| 25 | SH25-0.25-B | SH25-B | SH25-1-B | SH25-1.5-B | Red | 50 |
| 27 | SH27-0.25-B | SH27-B | – | – | clear | 50 |
| 30 | SH30-0.25-B | SH30-B | – | – | lavender | 50 |
| 32 | SH32-0.25-B | – | – | – | Yellow | 25 |
Hub material: Polypropylene Needle material: Stainless steel
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
TT taper nozzle
The tapered inner diameter allows the liquid to flow smoothly and prevents air bubbles from accumulating. Also ideal for applying gel-like instant adhesives.
| gauge | Material/needle length | Color | Number/box | |
|---|---|---|---|---|
| Standard/31.4mm | Hard/31.4mm | |||
| 14 | SH14TT-B | SH14RTT-B | olive | 50 |
| 16 | SH16TT-B | SH16RTT-B | gray | 50 |
| 18 | SH18TT-B | SH18RTT-B | Green | 50 |
| 20 | SH20TT-B | SH20RTT-B | Pink | 50 |
| 22 | SH22TT-B | SH22RTT-B | Blue | 50 |
| 25 | SH25TT-B | SH25RTT-B | Red | 50 |
| 27 | ー | SH27RTT-B | white | 50 |
Hub material: Polypropylene Needle material: Stainless steel
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
angle nozzle
It is possible to approach the inside of the workpiece.You can choose from 45 types of angle: 90 degrees and 2 degrees, and 30 types of nozzle diameters from 14 gauge to 10 gauge.
| gauge | Needle length | Color | Number/box | |
|---|---|---|---|---|
| 12.7mm / 45 | 12.7mm/90゜ | |||
| 14 | SH14-B-45 | SH14-B-90 | olive | 50 |
| 15 | SH15-B-45 | SH15-B-90 | amber | 50 |
| 18 | SH18-B-45 | SH18-B-90 | Green | 50 |
| 20 | SH20-B-45 | SH20-B-90 | Pink | 50 |
| 21 | SH21-B-45 | SH21-B-90 | purple | 50 |
| 22 | SH22-B-45 | SH22-B-90 | Blue | 50 |
| 23 | SH23-B-45 | SH23-B-90 | Orange | 50 |
| 25 | SH25-B-45 | SH25-B-90 | Red | 50 |
| 27 | SH27-B-45 | SH27-B-90 | clear | 50 |
| 30 | SH30-B-45 | SH30-B-90 | lavender | 50 |
Hub material: Polypropylene Needle material: Stainless steel
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
PP flexible nozzle
Ideal for areas that are difficult to insert and for applying solvents.Polypropylene needle allows application without damaging the workpiece.
| gauge | Needle length | Color | Number/box | |
|---|---|---|---|---|
| 12.7 mm | 38.1 mm | |||
| 15 | SH15PPS-B | SH15PP-B | amber | 50 |
| 18 | SH18PPS-B | SH18PP-B | Green | 50 |
| 20 | SH20PPS-B | SH20PP-B | Pink | 50 |
| 25 | SH25PPS-B | SH25PP-B | Red | 50 |
Hub material: Polypropylene Needle material: Stainless steel
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
Nozzle shield cap for light-curing and UV-curing liquids
Use by placing it over the nozzle hub
| Eur-lex.europa.eu eur-lex.europa.eu | Part number | Color | Quantity/box |
|---|---|---|---|
| 3 cc | SH03 | Red | 10 |
| 5cc~55cc | SH06 | black | 10 |
