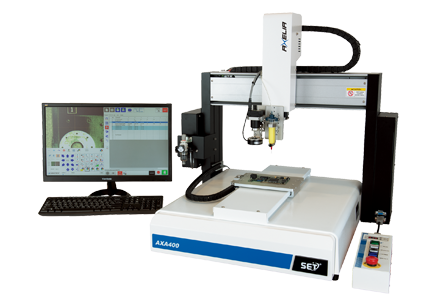

High-precision automated vision dispensing system AXELIA series
High-end dispensing know-how gathered here.
High-precision vision system that pursues all coating needs
The AXA series of high-precision automated vision dispensing systems features simple image processing tools and intuitive programming functions, making them ideal for applications requiring precise fluid application in a variety of manufacturing processes.
- Easy to check the discharge position with excellent visibility using a high-precision camera
- Accurate reference point recognition and repeated discharge position setting possible

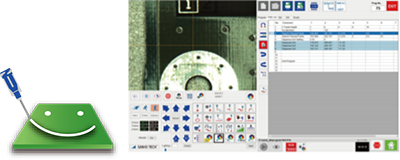

- Dispensing software “Fluid Magic” uniquely developed by Sanei Tech
A world of art-like dispensing made possible with Fluid Magic
Flexible motion control functions allow it to be applied to a variety of applications.

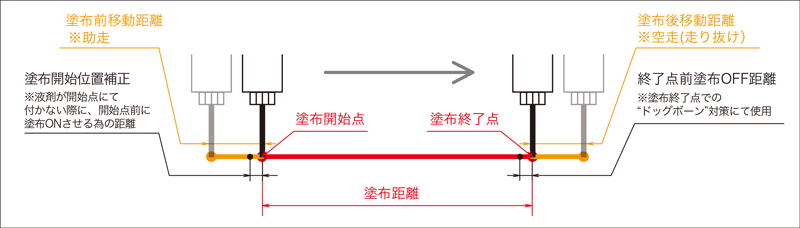

Enables precise point, line, circle, and arc dispensing trajectories.
block offset
Offset the taught trajectory in the X, Y, and theta directions by selecting and moving two points.

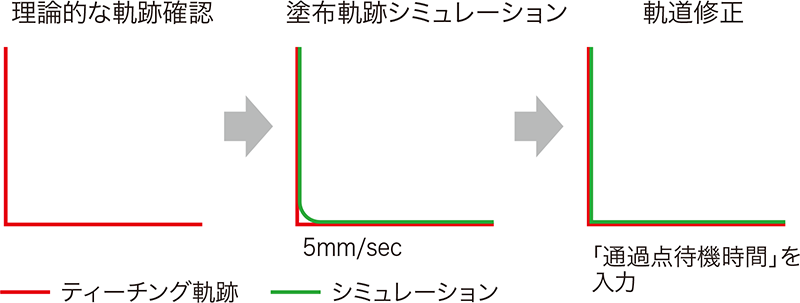

Application line simulation
Enter the “passing point waiting time” and the application path is visualized on the screen offline, enabling clear cornering application paths.

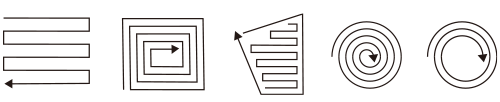

Fill function
Easily set application area, shape, and range. Easily adjust commands to meet your application requirements.
You can fill in rectangles with as few points as 2 points and circles as 3 points.

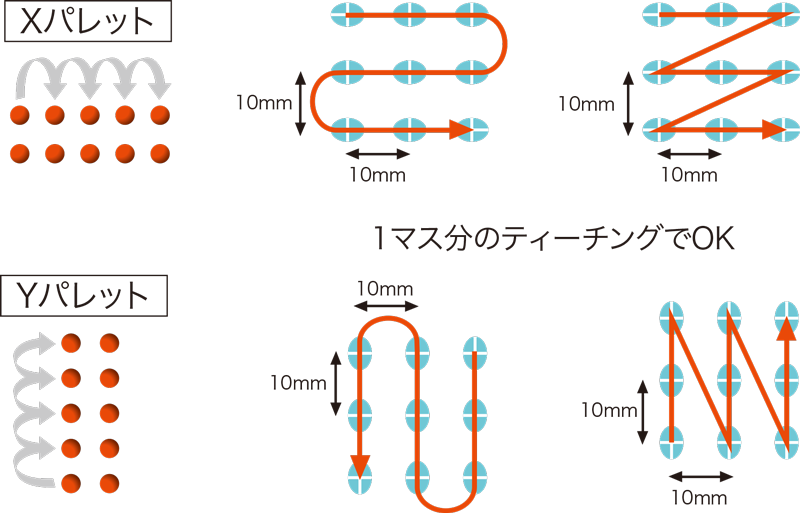

Palette function
It is applied repeatedly to the lined up workpieces at fixed positions and at equal intervals.

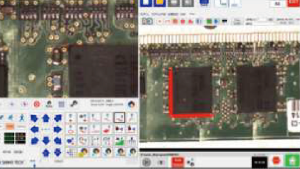

Easy vision teaching by simply selecting a location and projecting the image.
While viewing the camera image, you can easily program precise positioning by following the on-screen navigation.
Image search function

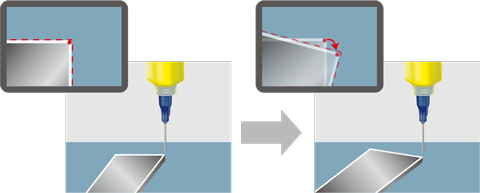

Even if the workpiece does not fit within the viewing angle, you can select two points and correct the tilt within a range of ±2°.
Image collection function
Corrects tilted workpieces within the area within a 360° range.
Accurate and scalable file import functionality
Easily download file dispensing paths and actual workpiece images and automatically convert them into points, lines, arcs, circles, etc.
1) DXF download editing function
Create a dispensing trajectory based on the imported drawing data (DXF). You can edit/change the order of that point if necessary.
2) Real scan function (patent pending)

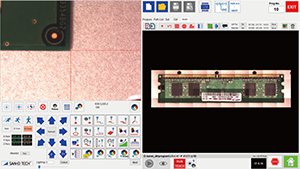

You can scan the actual workpiece image and easily teach on the screen.

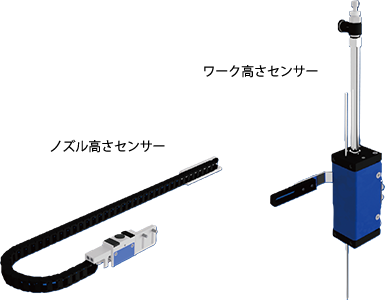

3) Sensor option to maintain uniform liquid application height
AXA Series Product Specifications
| Item | AXA200 | AXA300 | AXA400 | AXA600 | |
|---|---|---|---|---|---|
| Number of axes | 3 axis | ||||
| Operating range | X/Y axis | 200 / 200 | 300 / 300 | 400 / 400 | 600 / 500 |
| Z-axis | 75 mm | 150 mm | |||
| Maximum payload | X-axis (tool side) | 3KG | 5KG | ||
| Y-axis (work side) | 10KG | ||||
| Maximum speed (PTP drive) | X-axis | 500 mm / sec | 800 mm / sec | ||
| Y-axis | 500 mm / sec | 800 mm / sec | |||
| Z-axis | 200 mm / sec | 300 mm / sec | |||
| Position repeat accuracy | X, Y, Z axis | ± 0.008mm | |||
| data storage | PC save | ||||
| interpolation | 3 axes (3D space) | ||||
| language | Japanese English | ||||
| drive drive | PTP&CP | ||||
| external communication | I / O | 32 / 32 | |||
| Nozzle detection function | Option (contact type) | ||||
| vision system | Camera | Standard USB/High precision CCD | |||
| lens | Equipped as standard | ||||
| 照明 | Equipped as standard | ||||
| power supply | Automatic switching AC100-240V 50/60Hz | ||||
| Operating Environments | temperature | 10～40℃ | |||
| relative humidity | 20 to 90% (non-condensing) | ||||
| Linear guide | Single LM guide | ||||
| Drive method | XY axis / 3-phase micro stepping motor / Belt drive Z-axis / 3-layer microstepping motor / high-precision ball screw | ||||
