Highly accurate dispensing of various liquids without contacting the workpiece
High precision non-contact dispenser BEATRUM
High-speed JET capable of handling everything from low to high viscosity
- Available from low viscosity to high viscosity
- loaded volume
- Abundant optional nozzles
- Reduces bubbles when applying coating agent
- Easy cleaning with fewer parts in contact with liquid
- Stable application up to 250Hz
High precision non-contact dispenser BEATRUM-H
3 times more impact than conventional models
High impact type JET dispenser set for high viscosity liquids
- JET coating with high viscosity agent possible (~300,000mPa・s)
- Abundant optional nozzles and sheet parts
- Easy maintenance with fewer parts in contact with liquid
- Stable application up to 250Hz

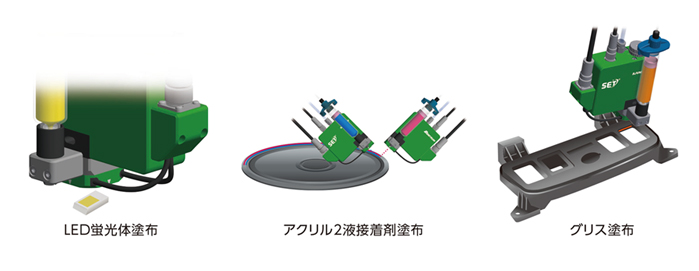

Examples of compatible liquids
Underfill, dam & fill, moisture-proof coating, UV adhesive, grease, oil, silver paste, paint, ink, primer, solvent, etc.

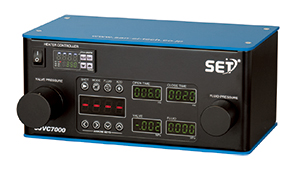

Dedicated controller jet controller SJVC7000
SJVC7000 is a compact controller that has all the functions necessary for JET dispensing, and has the following functions.
- Shot timer function
- Recipe registration function
- External Control
- ヒーター機能
Product Specifications
| BEATRUM | BEATRUM-H | dispense controller | ||
|---|---|---|---|---|
| dispense valve | dispense valve | |||
| Model | SJVH7000 | SJVH7000-H | SJVC7000 | |
| Size | Width | 53 mm | 250 mm | |
| 高 さ | 95 mm | 113 mm | ||
| Depth | 106 mm | 188 mm | ||
| weight | 650g | 1800g | ||
| Dispensing cycle | Max 250Hz | |||
| Compatible viscosity | 50,000mPa・s | ~300,000mPa・s | ||
| Minimum coating diameter | φ0.3mm | |||
| power supply | DC24V (AC100~240V adapter) | |||
