New standards for JET dispensing created by fine particle size and high viscosity compatibility
Piezo Jet Dispenser EXJET
EXJET is a new generation piezo jet dispenser that helps improve productivity on the manufacturing floor.
Newly developed actuator technology enables high-viscosity liquids to be dispensed even in small areas.
- High viscosity model that can handle high viscosity
- High viscosity agents of 300,000 mPa·s can also be dispensed using the JET method
- High-speed operation of up to 1000Hz increases dispensing efficiency even with high-viscosity liquids
- Patented special function enables high viscosity handling
- Nozzle heater is standard equipment

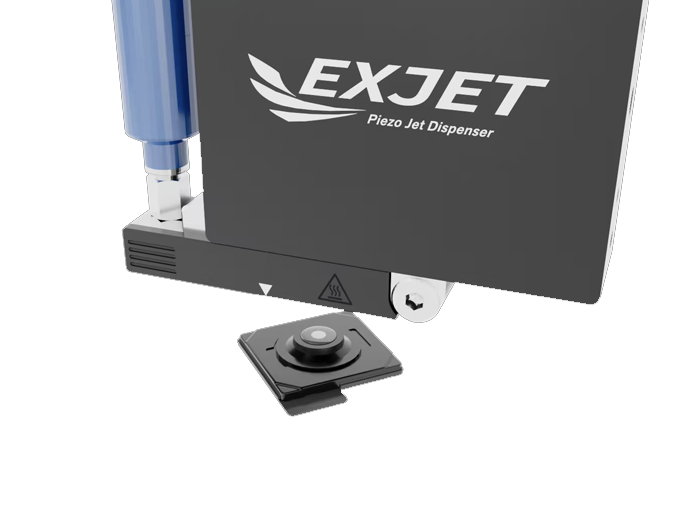

- Simple parts configuration greatly improves maintainability
Application example
Dispenses minute amounts of high-viscosity liquid more stably and quickly.

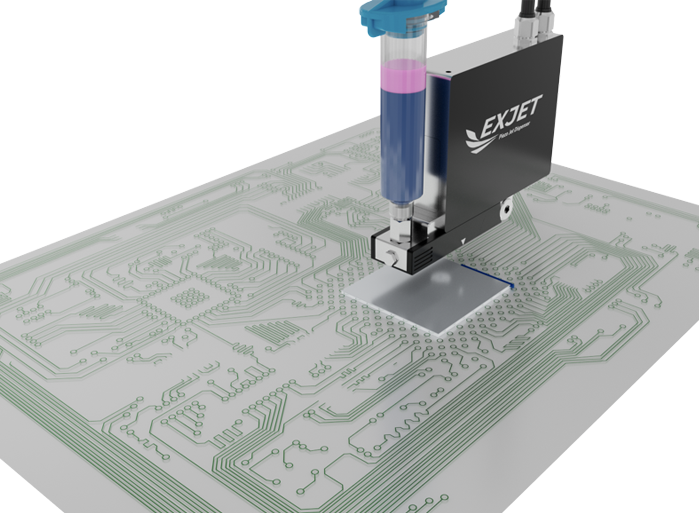

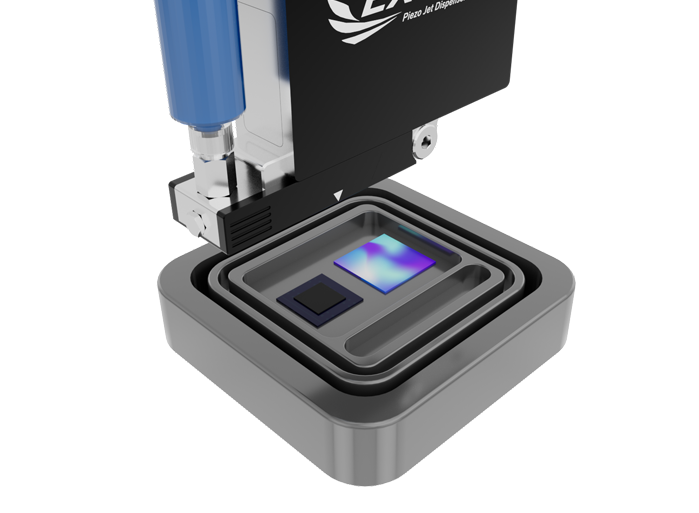

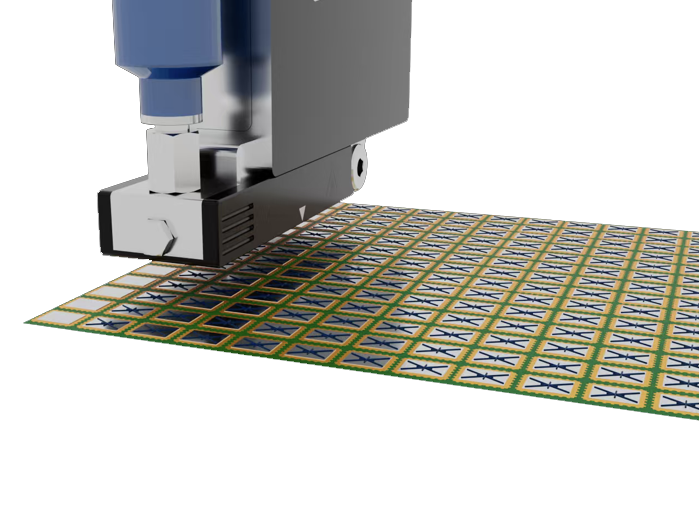

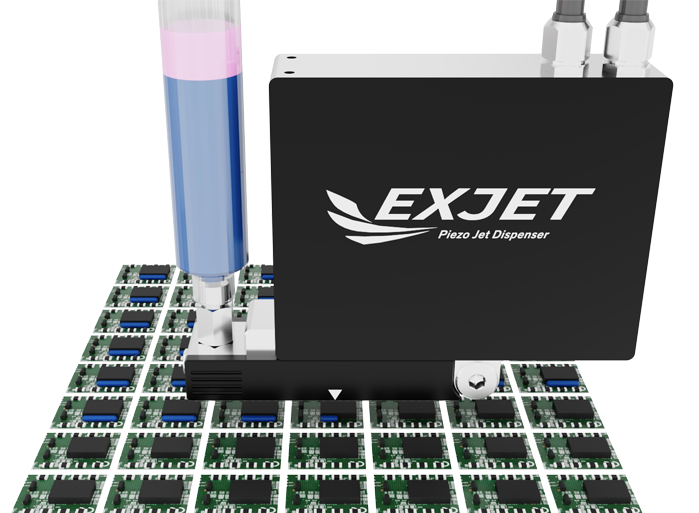

Microscopic application on substrates (underfill, die attach, camera module sealing, MEMS lid seal, sensor component sealing, etc.)
Piezo lineup: High-speed dispensing type

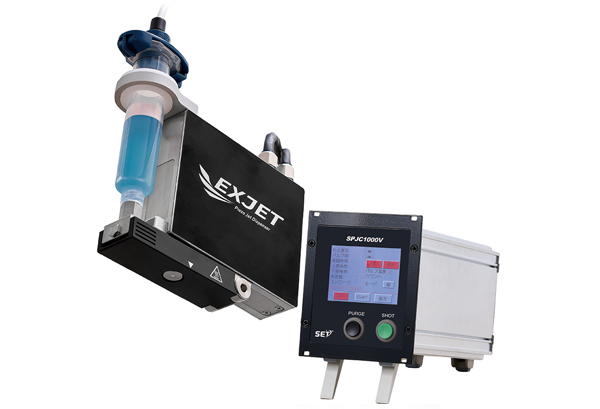

SPJH1000HS

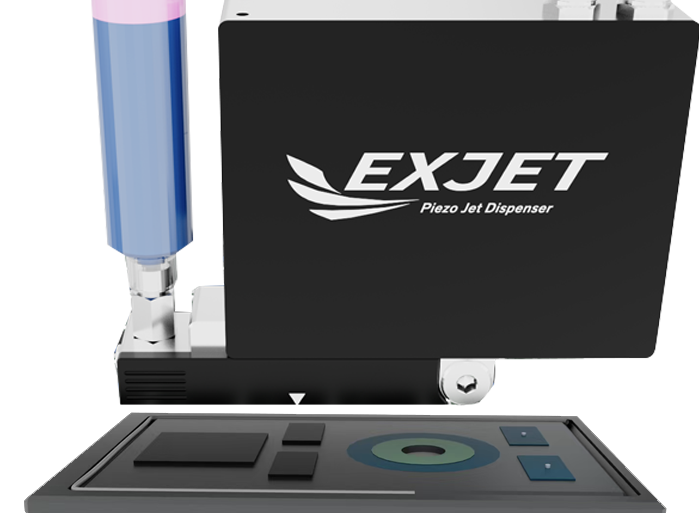

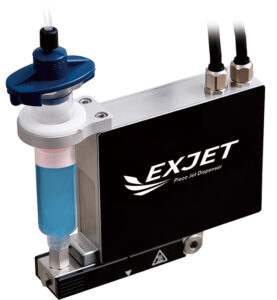

The EXJET (SPJH1000HS) is a piezo jet head configured to support high-speed line/dot application.
The specially designed actuator enables jet dispensing at the world’s fastest speeds.

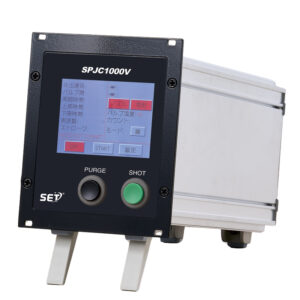

Piezo jet dispenser controller SPJC1000V
The SPJC1000V controller, a dedicated piezo jet controller, accurately controls the opening and closing time and impact force of the head. This is a high-performance model that also comes with heater and external control functions. Its rack mount design makes it easy to install in equipment.
| Model | SPJC1000V | |
| External dimensions | Width | 106 mm |
| 高 さ | 128.4 mm | |
| depth | 231 mm | |
| weight | 800g | |
| ヒーター機能 | will get | |
| Power-supply voltage | DC24V (100-240V AC adapter included) | |
| Manual Switch | Purge button, shot button | |
| Mounting | Tabletop installation or panel mount* | |

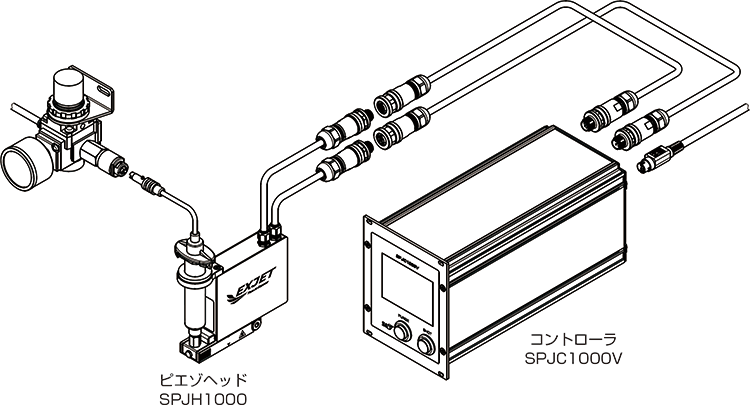

System diagram
Product Specifications
| EXJET dispense valve | EXJET-HS dispense valve | ||
|---|---|---|---|
| Model | SPJH1000 | SPJH1000HS | |
| External dimensions | Width | 114.8 mm | |
| 高 さ | 84.6 mm | ||
| depth | 24 mm | ||
| weight | 800g | ||
| Dispensing cycle | Maximum 1,000Hz (normal operation 500Hz) | Maximum 2,500Hz (normal operation 1,000Hz) | |
| Compatible viscosity | Maximum 300,000mPa・s | – | |
| ヒーター機能 | will get | ||
| Material of the main body’s wetted parts | SUS303/FKM/FFKM | ||
| Fluid supply fittings, threaded | M5 female | ||
| Mounting hole screw | ピッチ10mm | ||
| Maximum fluid pressure | 0.7MPa | ||
