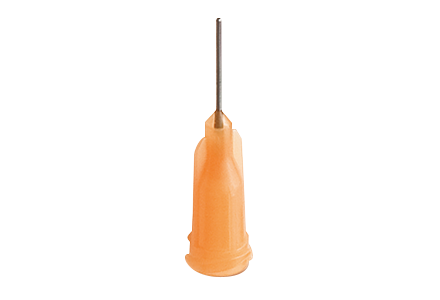

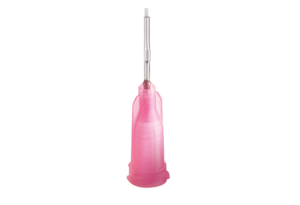

Micro dispensing nozzle
The outer diameter of the needle tip is tapered to minimize adhesion of the nozzle tip to the liquid, enabling highly stable, minute dispensing.
| gauge | Needle length | Color | Number/box | |||
|---|---|---|---|---|---|---|
| 6.4 mm | 7.0 mm | 9.5 mm | 12.7 mm | |||
| 23 | – | – | – | SH23CH-B | Orange | 50 |
| 25 | – | – | – | SH25CH-B | Red | 50 |
| 27 | SH27-0.25CH-B | – | – | – | clear | 25 |
| 30 | – | – | SH30CH-B | – | Red | 25 |
| 33 | – | SH33CH-B | – | – | clear | 25 |
Hub material: Polypropylene Needle material: Stainless steel
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
precision nozzle
Stable application due to high-precision machined one-piece shape
| Model number | Inner diameter (mm) | External size (mm) |
|---|---|---|
| SPN-40 | 0.40 | 0.50 |
| SPN-35 | 0.35 | 0.45 |
| SPN-30 | 0.30 | 0.40 |
| SPN-25 | 0.25 | 0.35 |
| SPN-20 | 0.20 | 0.30 |
| SPN-15 | 0.15 | 0.25 |
| SPN-10 | 0.10 | 0.20 |
Can be manufactured from a minimum inner diameter of 0.10mm Order unit: 1 piece Material: SUS303 Needle base: XNUMX thread screw
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
Ceramic ultra-small amount application nozzle
Needle base double thread screw specification. Securely attaches to the syringe and maintains high airtightness. Can be manufactured in 0.005μ increments from nozzle inner diameter 5mm
Order unit: 1 piece Material: Needle base/SUS Spacer (between needle base and needle)/SUS Needle/Ceramic (zirconia) Needle base: Double thread screw
Safety Information
Precautions and requests for use
For safe use of products such as syringes, barrels, pistons, tip caps, end caps, and nozzles, please observe the precautions below.
- Disposable
This product is optimized for one-time use. Reusing or cleaning may damage the product or cause the nozzle to come off, which may affect the safety of workers and surrounding objects. To maintain application quality, be sure to replace or dispose of the product after use. - Shock
Do not subject this product to strong impacts, especially when it is frozen, as this may cause damage. - Damage
Before using this product, check that it is not damaged. - Cleaning
Do not clean with certain solvents, especially toluene, MEK, or acetone. - Product Specifications
Pressurization and heating should be done within the specifications of each product. - Fire
Do not use the product near open flames. - Safety protection
Be sure to wear appropriate protective equipment such as protective glasses, clothing, and gloves before using this product. - Disposal
Please dispose of used products in accordance with local waste disposal regulations.
