Even materials that are considered difficult to process can be optimally mixed, enabling reliable application of minute amounts of sealing.

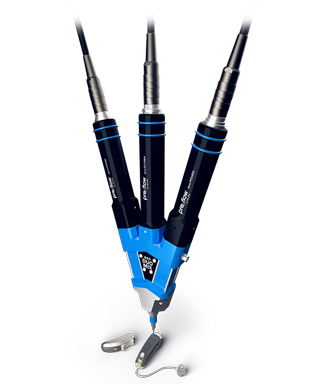

Dynamic Mixer Preeflow® eco-DUOMIX
preeflow® eco-DUOMIX450
- The first preeflow® series to feature a dynamic mixer
- Applicable to two liquids that are difficult to mix
- Compact design with mixer drive
- Possible to mix minute amounts down to 8 µl
- Disposable mixing capsules with optimized void volume reduce material waste
- Upgrade your existing eco-DUO450 with a dedicated kit (separate control unit required)
Discharge test

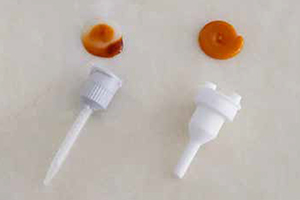

The results of mixing using a static mixer and a dynamic mixer under the same volumetric flow rate and environmental conditions were compared. The experiment was conducted using the same control system (same calibration and program) and the same pump (driver, pump housing, rotor and stator, etc.) to confirm the differences due to the mixing method. The material used was a difficult-to-handle two-component epoxy adhesive, with a mixing ratio of 10:1 (A:B) by weight, and the discharge rate was varied (0.5 ml/min to 6 ml/min). As shown in Figure 1, the test material using the static mixer only partially cured and did not fully cure.

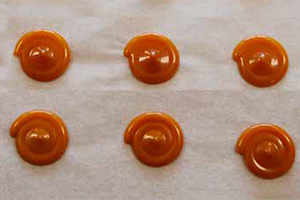

The dynamic mixer can be used at speeds of up to 200 rpm and up to 2000 rpm. As shown in Figure 2, uniform mixing is possible at the minimum speed. Even at higher discharge and mixer speeds, no optical differences are observed in the materials. In this way, the dynamic mixer can reliably mix two-component epoxy adhesives, which could not be processed with a static mixer, even at the minimum mixing speed, allowing for optimal fluid application.

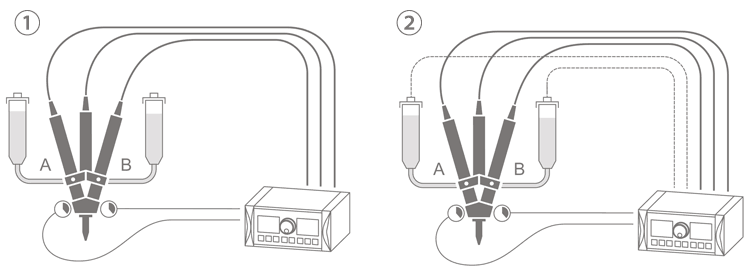

System example
Applications

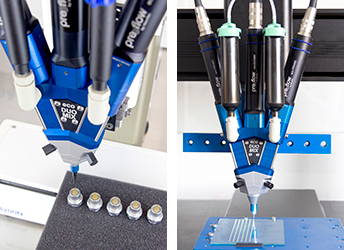

By using the dedicated controller eco-CONTROL EC200-DUO, it is applicable to various coating processes such as spot coating, line coating, and potting.
Industry: Automotive industry, electromagnetic parts, medical equipment, etc.
2-component adhesives, sealants: silicone, epoxy, polyurethane, acrylate, etc.
Product Specifications
| eco-DUOMIX450 | |
|---|---|
| Size | 228 mm x 163 mm |
| weight | 1,800 g |
| Maximum operating pressure*5 | 2.0MPa |
| Maximum discharge pressure *1 | 2.0MPa |
| Applicable viscosity | Water-soluble to paste-based |
| Discharge flow rate *3 | 0.2 to 12 ml/min (at 1:1 ratio) |
| Minimum discharge amount | 0.008 ml |
| Discharge accuracy *2 | ± 1% |
| Mixing ratio | 1: 1 to 10: 1 |
| Stator material | VisChem (optional VisLas) |
| Liquid feed port | G 1/8“DIN/ISO 228 |
| Outlet | Luer lock type |
| Wetted parts | Anodized aluminum / SUS / VisChem / FFKM / POM / PE-HD |
| Operating Environments | 10℃ to 40℃ |
| Repeatability | > 99% |
| Mixing speed *3 | 10 to 1000 revolutions per minute |
*1 Maximum discharge pressure and self-sealing decrease as the material viscosity decreases, and increase as the viscosity increases. Please consult the material manufacturer.
*2 Volume discharge as the absolute deviation of one revolution of the dispenser. It varies depending on the viscosity of the discharged material.
*3 Maximum flow rate varies depending on material viscosity, input pressure, and mixing ratio.
*5 Non-self-leveling material.
