Achieve highly accurate and stable liquid application work
Large capacity dispenser
vipro-PUMP

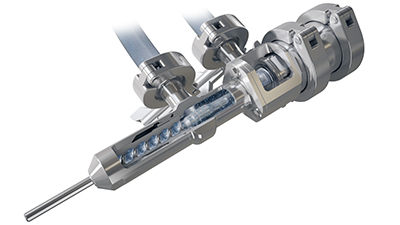

The large-volume dispenser is a “continuous volumetric dispenser” that transfers liquids.endless piston principle” to realize highly accurate and stable liquid dispensing work. It maintains excellent dispensing accuracy even when the viscosity and density of the liquid changes.
Product advantages
Can handle liquids that are difficult to handle
Several types of elastomers with chemical and abrasion resistance are available, and each size is available.
Highly accurate application of high viscosity liquids and filler-containing liquids

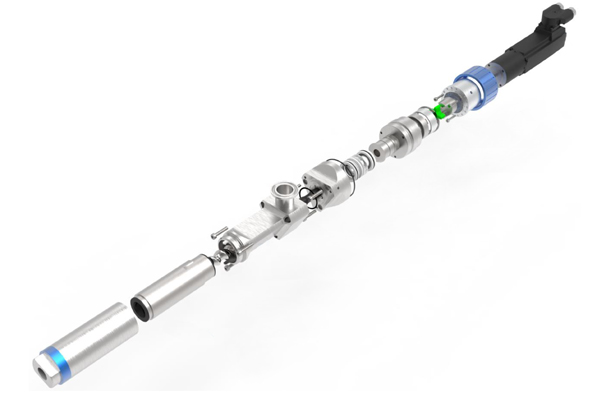

Easy to assemble/disassemble dispenser when cleaning
Easy-to-clean platform
The vipro-PUMP dispenser is easy to clean and maintain, and is used in a variety of manufacturing sites. The unique housing structure allows easy access to the inside of the pump (rotor, drive shaft, etc.) without removing the seals. This significantly reduces cleaning and material loss. It also allows for smaller batch sizes, improving production efficiency.

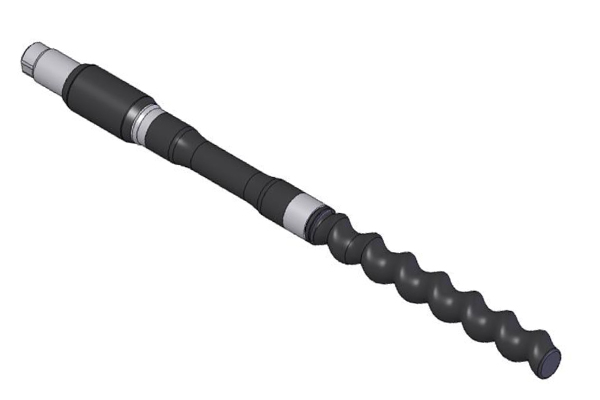

Dismantled drive shaft
When replacing the drive shaft, the rotor parts can be separated with screws, and the rotor parts can be reused, significantly reducing repair costs.

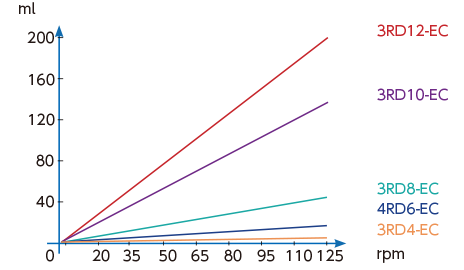

Discharge volume and discharge speed increase constantly

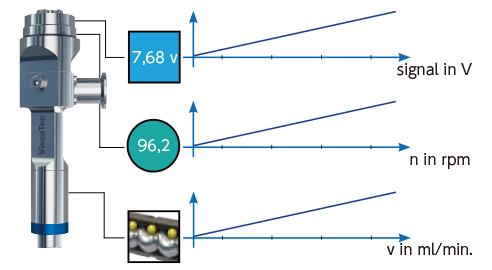

The speed is controlled by an analog signal connected directly to the motor. The discharge amount per rotor rotation is always constant. Discharge volume increases in direct proportion to rotation speed. Stable application without pulsation even when the viscosity of the liquid changes.

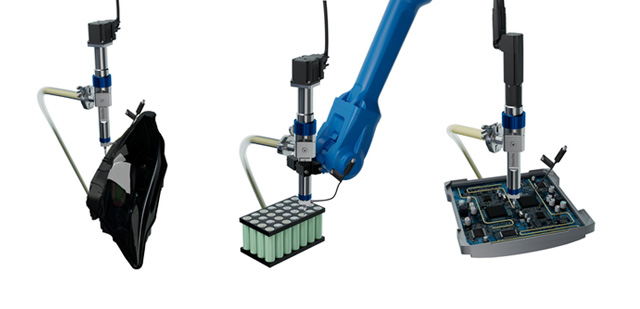

Applications

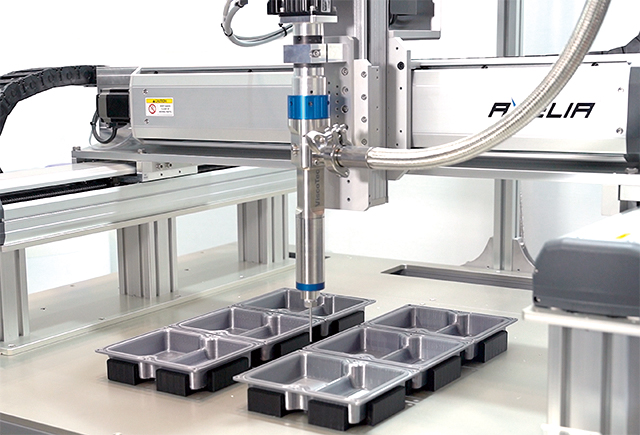

Sealing of battery cases in combination with an orthogonal robot.
Continuous discharge over a certain length and accurate, fixed-volume application are possible.
Sealing for automobile parts, etc.
Product Specifications
Large capacity dispenser
| size | 4RD6 | 3RD8 | 3RD10 | |
|---|---|---|---|---|
| X | 233/235 | 235/237 | 262/264 | |
| Y | 157/159 | 135 | 186/188 | |
| L | 76 | 76 | 76 | |
| Z1 | 1.6/2.4 | |||
| Z2 | G1/2″ | |||
Large-capacity dispenser (with luer lock nozzle)
| size | 4RD6 | 3RD8 | 3RD10 | 3RD12 |
|---|---|---|---|---|
| X | 211 | 211 | 237 | 271 |
| Y | 135 | 135 | 161 | 195 |
| L | 76 | 76 | 76 | 76 |
| Z1 | G 1/4 ″ | G 3/8 ″ | ||
| Z2 | G1/2″ | |||
